Brodospas Alfa


General
YARDNUMBER 552101
IMO NUMBER 9451587
DATE OF DELIVERY 2009
VESSEL BUILT "Damen" shipyard - Galati
BASIC FUNCTIONS Offshore supply, towing, anchor handling operations,
fire fighting and oil recovery operations
CLASSIFICATION Bureau Veritas
I HULL MACH
Tug; Supply vessel/Special service - Anchor handling; Fire fighting ship 1;
Oil Recovery Ship - water spraying
Unrestricted navigation
AUT-UMS; DYNAPOS -AM/AT -R
FLAG Malta
OWNER Croatia, Shipping LTD.
MANAGER Brodospas - Split
Dimensions
LENGHT O.A. 67.18 m
ARTICLE 2(8) 62.48 m
BEAM MLD. 15.00 m
DEPTH MLD. 6.75 m
DRAUGHT SUMMER 5.50 m
DEADWEIGHT (SUMMER) 1913 t
GRT 2485
NET 745
DECK AREA 420 m2
DECK LOAD
(AT 1 m ABOVE DECK)		 900 t
DECK LOAD 5 t/m2
Tank capacities
BALLAST / DRILL WATER 775 m3
FUEL OIL (SERVICE) 430 m3
PORTABLE WATER 295 m3
DRY BULK 170 m3
FUEL OIL - CARGO 480 m3
CARGO LIQUID MUD/ BRINE / FUEL 455 m3
RECOVERED OIL (PART OF L.M.) 205 m3
CHAIN LOCKERS 135 m3
Performances (Approx.)
SPEED 15.0 kn
BOLLARD PULL 131 t
MAX SPEED / CONSUMPTION 15 knots / 46 m3/h
ECONOMY SPEED / CONSUMPTION 12 knots / 26 m3/h
ECONOMY SPEED / CONSUMPTION (WITH ONE MAIN ENGINE) 10 knots / 15 m3/h
Propulsion system
MAIN ENGINES 2x CAT C280-12
PROPULSION POWER 2x 4060 kW at 1000 rpm
PROPELLERS, R.R. 2x 3400 mm, CPP, in optima nozzles
BOW THRUSTERS, R.R. 2X 450 ekW, 1300 mm, CPP
STERN THRUSTER, R.R. 1X 450 ekW, 1300 mm, CPP
Auxiliary equipment
SHAFT GENERATORS 2x 1000 ekW at 1800 rpm, 440 V, 60 HZ
GENERATOR SETS 2x CAT C18-TA, each 408 ekW at 1800 rpm, 440 V, 60 Hz
EMERG. / HARBOUR GEN. SET 1x CAT C9-TA, 163 ekW at 1800 rpm, 440 V, 60 Hz
SPRAY BOOMS DISPERSANT SYSTEM

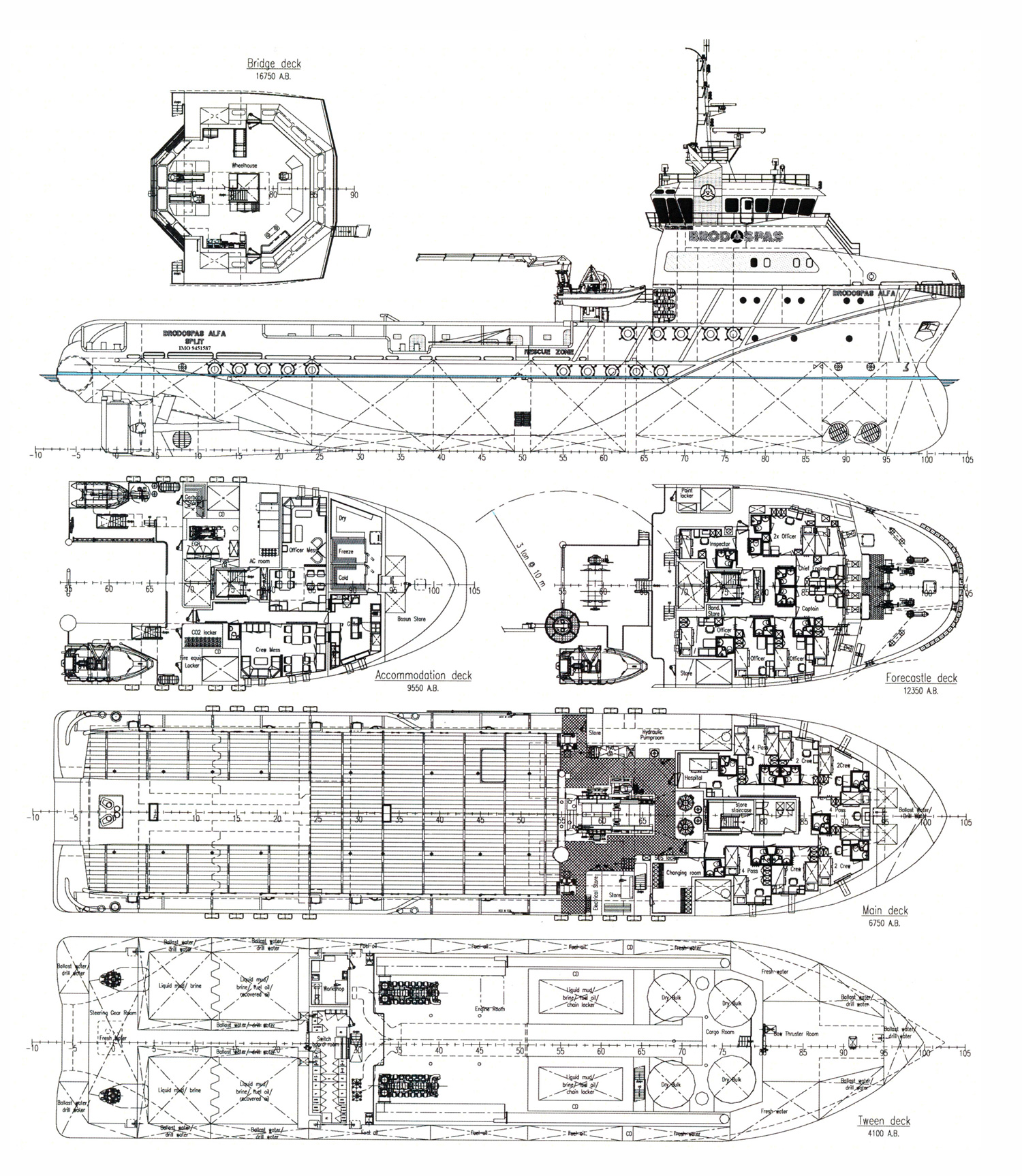

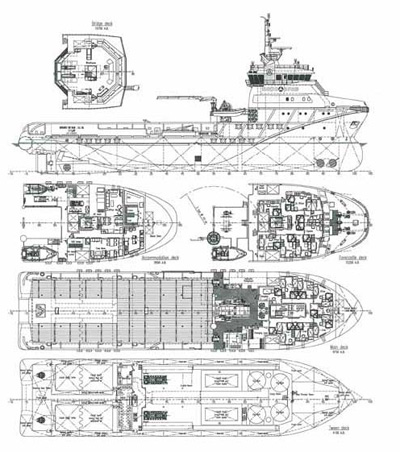

Deck lay-out
ANCHOR MOORING WINCH 1x Hydraulic, with two warping heads
CAPSTANS 2x Hydraulic, each 5 t to pull
DECK CRANES 1x knuckle boom 2.8 t at 10.82 m (harbour with winch)
TOWING WINCH 1x LP Hydraulic, double drum, 150 t pull, 250 t brake
MAIN TOWING WIRE 1100m/64mm
TOWING PINS 1x SWL 180 t
CHAIN FORK 1x SWL 250 t
TUGGER WINCH 2x Hydraulic, each 10 t pull
FAST CRAFT BOAT / WORKING BOAT 1x 6.7 m, 260 HP diesel engine
FAST RESCUE BOAT 1x 40 HP
Cargo handling system
BALLAST / DRILL WATER PUMP 2x 120 m3/h at 8.0 bar
FUEL OIL PUMP 2x 120 m3/h at 9.0 bar
FRESH WATER PUMP 1x 120 m3/h at 9.5 bar
DRY BULK COMPRESSOR 75t/hr at 6.0 bar
LIQUID MUD / BRINE PUMP 2x 75 m3/hr at 20.0 bar
Accommodation
CREW 17 (29 total)
SUPER NUMERARIES 12
Nautical and communication equipment
CALL SIGN 9HA2915
RADAR SYSTEM 1x X-band + S-band / ARPA
DP- SYSTEMS DP-2
GMDSS Area A3
SATCOM fleet broad band
