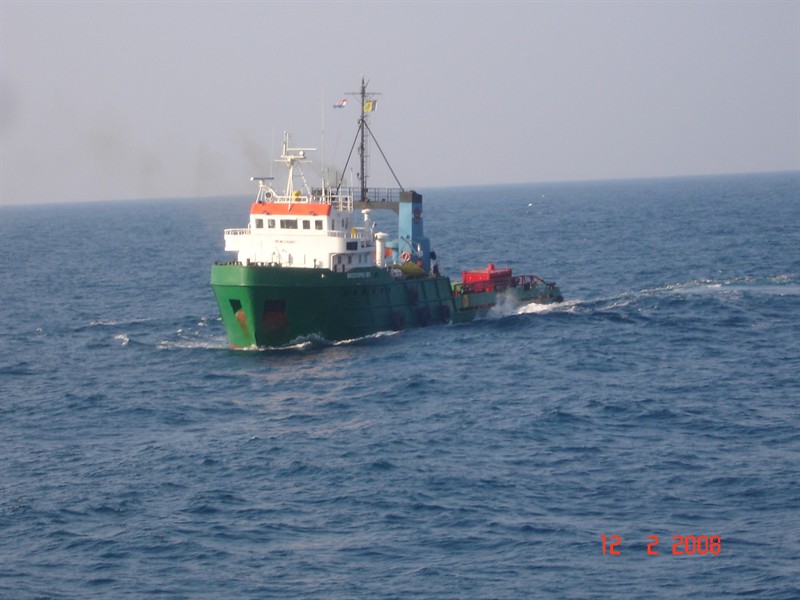

Brodospas Ibis


General
IMO NUMBER 7304807
FORMER NAME "IBIS ONE"
OWNER BRODOSPAS - SPLIT
MANAGER BRODOSPAS - SPLIT
COUNTRY AND PORT OF. REG. CROATIA - SPLIT
DELIVERED 1973
VESSEL BUILT SCHEEOSWERT BODEVES GRUNO HOOGEZAND - NETHERLAND
CLASSIFICATION BUREAU VERITAS, CROATIAN REGISTER
I HULL MACH
Supply vessel
Unrestricted navigation
NOBLE, DENTON ASSOCIATED LTD YES
Dimensions
LENGHT O. A. 53,15 m
LENGHT ARTICLE 2 (8) 47,61 m
BREADTH MOULDED 11,50 m
DEPTH MOULDED 5,50 m
DRAFT 3,77 m
FREEBOARD 1402 mm
GROSS TONNAGE 914
NET TONNAGE 274
DEADWEIGHT 725 tons
SUEZ CANAL CERTIFICATE (YES/NO) YES
DECK MEASUREMENTS 235 m2
DECK CARGO CAPACITY 400 tons
DECK STRENGHT - AFT PART 5 tons / m2
Towing - Anchorhandling
BOLLARD PULL 56 TONS MAX.
TOWING ANCHORHANDLING WINCH "BRATTVAAG" SL 100
No. OF DRUMS TWO
DRUM CAPACITY, EACH DRUM 1000 m
MIN. RATED PULL/BRAKE 100 TONS
EMERGENCY RELEASE OPERATE YES
TOWING MAIN WIRE 850 m x 57 mm
TOWING SPARE WIRE 1000 m x 52 mm
TOWING SHACKLES (No/TYPE/S WL) 2x100 T, 3x75 T GREEN PIN
TOWING QUICK RELEASE FROM WHEEL HOUSE
TOWING PINS NO
TOWING GUIDE/GOG EYE TYPE GOG EYE PORTABLE
STERN ROLLER, DIAMETER 1525 mm
PENNANT WIRE/CHAIN STOPPERS NO
Deck equipment
ANCHORS
PORT ANCHOR TYPE: STOKES, WEIGHT: 855 kg, CABLE DIA: 30, CABLE LENGTH: 540
STARB. ANCHOR TYPE: STOKES, WEIGHT: 855 kg, CABLE DIA: 30, CABLE LENGTH: 540
SPARE ANCHOR TYPE: STOKES, WEIGHT: 855 kg
ANCHOR WINDLASS, MAKE BRATITVAAG/B 9 - 50
CAPSTANS BRATTVAAG/C 4,3 TONS
TUGGER WINCHES NO
CARGO CRANE MAKE TYPE: MLVT 360-2-11 SWL: 8-2 AT: 3,8-11 m OUTREACH
INFLATABLE LIFE RAFTS No.: TWO ; TOTAL CAPACITY: 2x15 ; 2x10 ; 1x12 PERSONS
RIGID WORK BOAT No.: NO ; TOTAL CAPACITY: 6 PERSONS
Tank capacities abd discharge rates
POTABLE WATER CAPACITY 130 m3; 80 TONS/HOUR AT 6 BAR
DRILL WATER CAPACITY 376 m3; 90 TONS/HOUR AT 6 BAR
FUEL OIL CAPACITY -TOTAL 343 m3; 80 TONS/HOUR AT 6 BAR
LIQUID MUD CAPACITY 90 m3; 50 m3/HOUR AT 12 BAR
BULK CEMENT TANKS 120 m3; 50 TONS/HOUR AT 5 BAR
Propulsion system
MAIN ENGINES NORMO DIESEL TYPE: KVMB - 16
BORE: 250 mm STROKE: 300 mm
POWER kW: 2x2061 TOTAL kW: 4122
AUXILIARY ENGINE GENERAL MOTORS 8 V - 71 N
GENERATORS 2x268 kVA
TOTAL GENER/ELEC. POWER 536 kVA
VOLTAGE 3x440 V
FREQUENCY 60Hz
MAIN PROPELLERS CCP HJELSET TYPE: RGA 77/500
NOZZLES - MAKE HJELSET FIXED
BOW THRUSTER No. ONE, TOTAL kW: 210, TOTAL THRUST: 3,6 TONS; ULSTEIN TYPE: 90TV HY
SPEED/CONSUMPTION
MAX. CRUISING SPEED 13 KNOTS, CONSUMPTION: 23 TONS, RANGE: 13 DAYS
ECON. CRUISING SPEED 11 KNOTS, CONSUMPTION: 12 TONS, RANGE: 24 DAYS
Firefighting
DECK Fi-Fi UNIT Capacity 1000 m3/h at 10 bar
Nautical and communication equipment
CALL SIGN 9AA5585
GMDSS AREA A3
MF/HF Sailor HC - 4500
VHF/DSC DEBEG/ATLAS SAILOR
VHF DEBEG 6330
VHF / GMDSS TRON x2, SALVITA
VHF PORTABLE 2x MOTOROLA
2 x INM-C T&T 3020 C
SAT. COM. FLEET 33
AIS FURUNO FA-1000
LRIT T&T
1 x RADAR FURUNO FR-1500
1 x RADAR FURUNO FR-1500
GYROCOMPASS SPERRY SR 120
MAGNETIC COMPASS KROHN NO.39-10 REFLECTOR
AUTOPILOT SPERRY SCC
ECHOSOUNDER SIMRAD ES 2 BN
DIRECTION FINDER MARCONI HODESTAR
SATELLITE NAVIGATOR INTERPHASE STAR PILOT 6, CHART MASTER
1 x INTERNAL COM. SYSTEM AMPLIDAM HA 1000
1 x INTERNAL COM. SYSTEM AMPLIDAM JA 4510
EPIRB JOTRON, TRON 40 C -PS
EMERGENCY STEERING POSITION FROM STEERING ROOM COMPARTMENT
VOICE COMM. BETWEEN BRIDGE AND EMER. STEERING POSITION Talk Back System
VOICE COMM. BETWEEN MAGNETIC COMPASS AND NORMAL STEERING POSITION Talk Back System
VOICE COMM. BETWEEN BRIDGE AND ENGINE ROOM Talk Back System
SART Mc Murdo, NOVA MARINE
NAVTEX FURUNO
Accomodation
CREW 18 (30 TOTAL)
TOTAL No. OF SUPERNUMERARIES PERMITTED 12
CREW CABIN No. 13
SUPERNUMERARY CABINS 1
SUPERNUMERARY BERTHS 10
SUPERNUMERARY SEATS 12
SHIP'S HOSPITAL, PERSONS 1
Other matrials / equipment
COMPLETE WORKSHOP WITH LATHE, DRILLING MACHINE, GRINDER ETC
GAS/OXYGEN AND ELECTRIC CUTIING/WELDING EQUIPMENT
