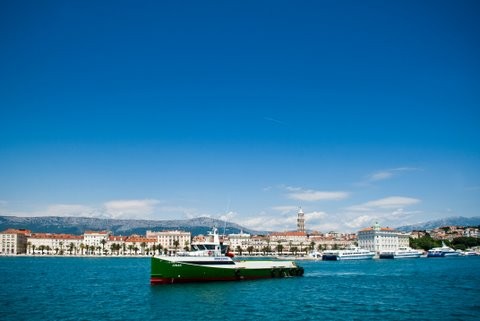

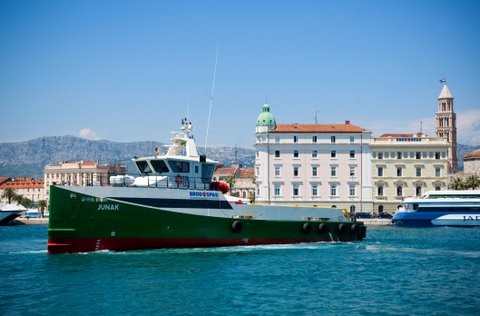

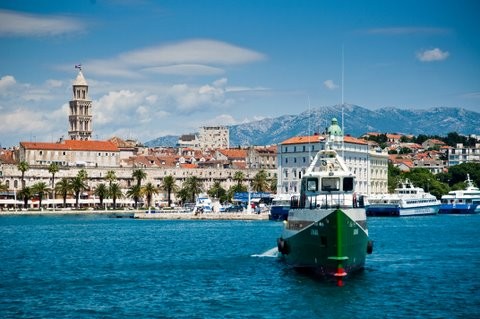

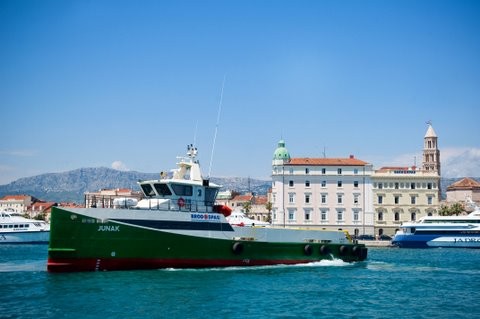

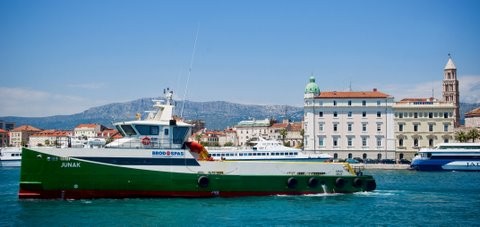

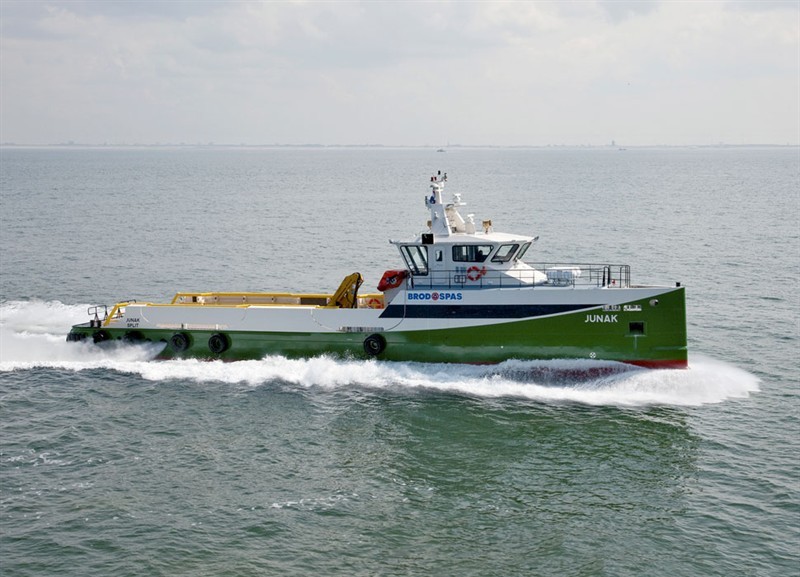

Junak


General
YARDNUMBER 544902
IMO NUMBER 9510632
OWNER Brodospas
MANAGER Brodospas - Split
FLAG CROATIA
DATE OF DELIVERY May 2009
VESSEL BUILT "Damen" shipyard - Gorinchem
HULL MATERIAL Aluminium
SUPERSCRUCTURE Aluminium
BASIC FUNCTIONS Fast supplier, crew boat
CLASSIFICATION Bureau Veritas / CRS
I HULL • MACH
Dimensions
LENGHT O.A. 35.95 m
BEAM O.A. 7.33 m
DEPTH AT SIDES 3.30 m
DRAUGHT AFT (APPROX.) 2.00 m
GROSS TONNAGE 168
NET TONNAGE 50
Capacities
FUEL OIL 28.00 m3
CARGO FRESH WATER 25.00 m3
WASTE WATER 0.50 m3
DIRTY OIL 0.50 m3
DECK TANKS 2 x 5.00 m3
PASSENGERS 30 persons
DECK SPACE 120.00 m2
DECK STRENGTH 1.4 t/m2
Performance
SPEED (TRIALS) 28 knots
OPERATIONAL SPEED 26 knots
Propulsion system
MAIN ENGINES 3 x Caterpillar x C32 C (WOSR)
TOTAL POWER 3132 bkW (4200bhp)@2100-2300rpm
GEARBOXES 3 x Reintjes WVS730
PROPELLERS 3 x Fixed pitch propellers
Electrical equipment
GENERATOR SET(S) 2 x 60 kW; 230V/400V 50Hz

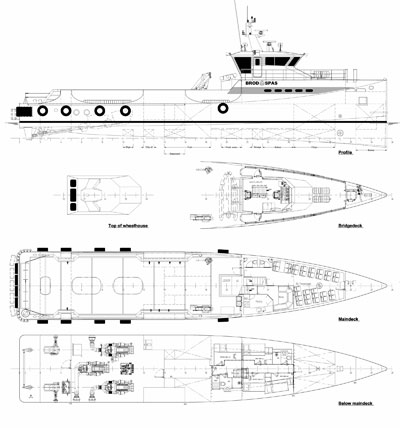

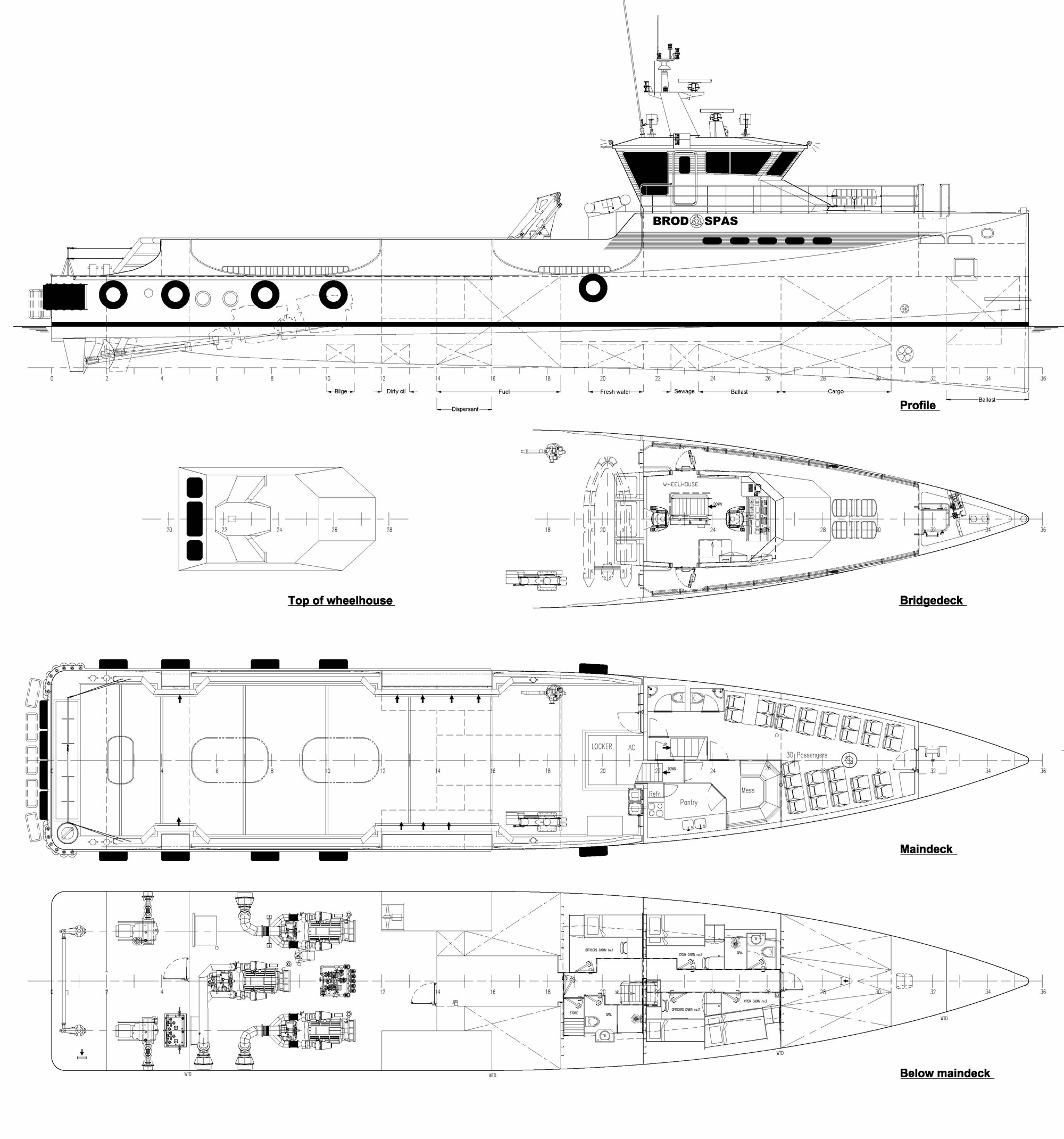

Deck lay-out
ANCHOR According to classification regulation
ANCHOR WINCH Electrically operated
CRANE 1 x Effer 6000-1S (2t @ 5m)
Life saving equipment
LIFE BUOYS 4
LIFE JACKETS 40
LIFE RAFTS 2 x RDF 25 persons
FIRE MAN’S OUTFIT 2 x incl. 2 x fire axes
FAST RESCUE CRAFT 4,70 m MOB with outboard motor 25 hp
INTERNAL FIRE-FIGHTING Fixed gas flooding system Engine Room
Portable extinguishers according to class
Auxiliary systems
EXTERNAL FIRE-FIGHTING SYSTEM 1 x monitor 6000ltr/min
SPRAY BOOMS 82 litres seawater/min
SPRAY SHIELD ON DECK Fitted around the hull at deck level
MECH. VENTILATION Axial flow fans
BOWTHRUSTERS 1 x 75 kW, Hydraulic
Accommodation
OFFICERS CABIN 2 x 1 persons
CREW CABIN 2 x 2 persons
SUPERNUMERARIES SEATS 30
AIR-CONDITIONING Air Conditioning in wheelhouse and accommodation
CREW 6 PERSONS
SUPERNUMERARIES 30 PERSONS
Nautical and Communication equipment
CALL SIGN. 9AA6352
SEARCHLIGHT 2 x 500 Watt
RADAR 2 x JRC JMA - 5106
MAGNETIC COMPASS Ritchie HB 71
ECHO SOUNDER Raymarine ST 40
GPS NAVIGATOR NWZ - 4570
VHF Sailor 2048 / Sailor RT 5022
HF/MF Sailor CU 5100
PA/LOUDHAILlNG SYSYTEM Alphatron Marine
SATCOM NERA FLEET 33
NAVTEX JCR NCR - 333
AUTOPILOT NAUTOPILOT NP 60
AIS JHS - 182
