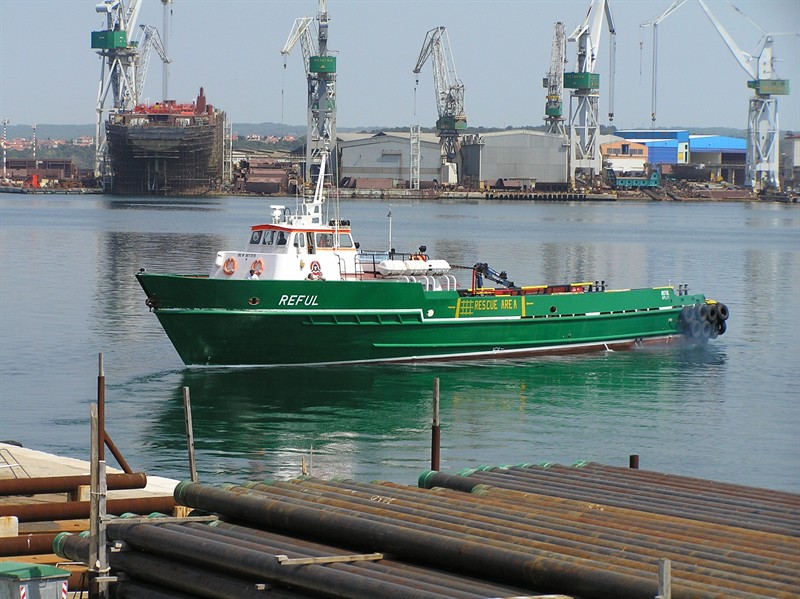

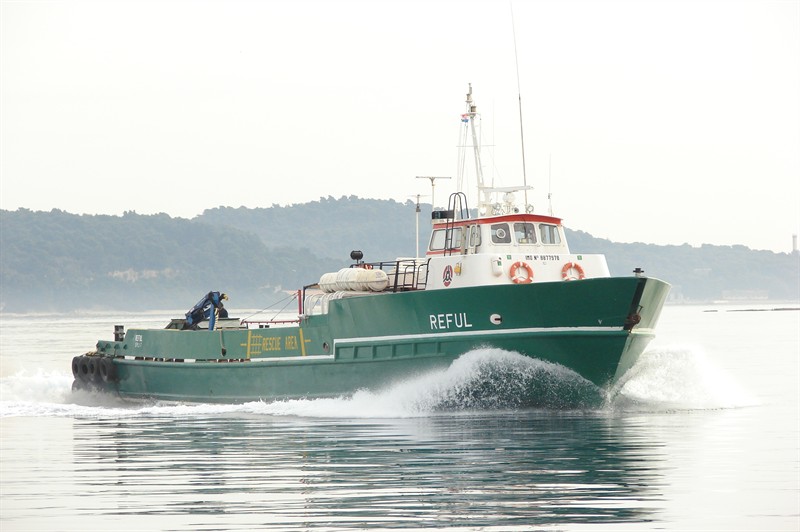

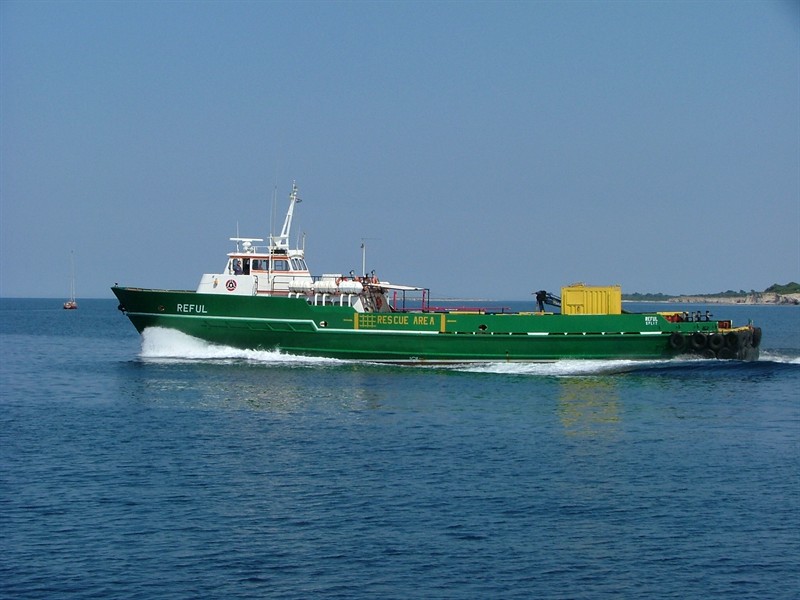

Reful


General
IMO NUMBER 8877978
FORMER NAME "STRELJKO", "ARROW"
OWNER Brodospas
MANAGER Brodospas - Split
FLAG Croatia - Split
DELIVERED 1979
VESSEL BUILT SWIFTSHIP INC. MORGAN CITY USA
CLASSIFICATION Croatian Register
★90A1 3 SUPPLY VESSEL SD ★M1
Dimensions
LENGHT O.A. 38.10 m
LENGHT ARTICLE 2 (8) 33.20 m
BREADTH MOULDED 7.09 m
DEPTH MOULDED -
DRAFT 2.39 m
FREEBOARD -
TONNAGE - DEAD WEIGHT
GROSS TONNAGE 162 t
NET TONNAGE 49 t
DEADWEIGHT 60 t
Deck
LOADING CAPACITIES
DECK MEASUREMENTS 92 m2
DECK CARGO CAPACITY 60 t (Max.)
DECK STRENGHT - AFT PART 0.5 t / m2
DECK CRANE SHIPS SERVICE SWL 910 kg
Anchor
ANCHOR TYPE DENFORTH, weight: 92 kg , CABLE DIA: 13, CABLE lenght 100 m
ANCHOR WINDLASS make: tulsa - 34
Bridge - navigation equipment
MANOEUVRING CONTROL POSITION TWO
1x RADAR MAKE: FURUNO type: FR 8100 D
MAGNETIC COMPASS make: KOMPAS RIJEKA type: 120
ECHO SOUNDER make: INTERPHASE type: ADVANTAGE
SATELLITE NAVIGATOR make: INTERPHASE type: CHART MASTER 11 CVS+
SART Mc Murdo S-4
EPIRB JOTRON type: 97780
NAVTEX FURUNO type: NX 500
FLEET 33 T&T
Liquid capacities
POTABLE WATER CAPACITY 59 m3
FUEL OIL CAPACITY - TOTAL 37 m3
Boats
INFLATABLE LIFE RAFTS No.: SIX TOTAL CAPACITY: 6x20 persons
Engines
MAIN ENGINES
MAKE MTU type: 12V 331 TC81
BORE 165 mm STROKE: 155 mm
KILO WAT RATING BRAKE kW: 2x820 total kW: 1640
AUXILIARIES / ELECTRIC POWER
MAKE KATO
GENERATORS 2x37.5 kVA
TOTAL GENER/ELEC. POWER 75 kVA
VOLTAGE 220/380 V
FREQUENCY 50 Hz
MAIN PROPELLERS 2 propellers
SPEED/CONSUMPTION
MAX. CRUISING SPEED 19 kn, consumption: 9 t, range: 4 days
ECON. CRUISING SPEED 17 kn, consumption: 6.2 t, range: 5 days
Radio
CALL SIGN 9A2243
R/T (SSB) MAKE: SAILOR COMPACT HF SSB RE 2110
VHF MAKE: SAILOR COMPACT VHF RT 2048
FURUNO - model FM - 8800 S
DEBEG - 6310
Accomodation
CREWCABIN No. 4
CREW 6 persons + 44 supernumeraries
total: 50
